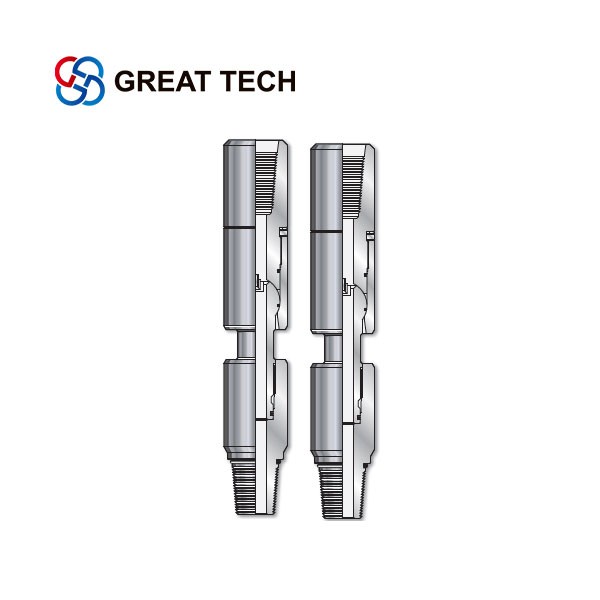

The knuckle joint provides additional flexibility in the tool string. This flexibility is often necessary when the bore of the hole is restricted and/or highly deviated. The knuckle joint allows full 360° rotation of the tool string and provides 15° of angular deviation and internal pressure sealing throughout the full rotation of the tool.
Description:
The knuckle joint provides additional flexibility in the tool string. This flexibility is often necessary when the bore of the hole is restricted and/or highly deviated. The knuckle joint allows full 360° rotation of the tool string and provides 15° of angular deviation and internal pressure sealing throughout the full rotation of the tool.
The full flow through bore also allows the use of flow- activated tools below the coiled tubing knuckle joint. Multiple coiled tubing knuckle joints can be incorporated in particularly long tool strings.
Datasheet:
O.D. | I.D. | Length | Tensile lbs | Connection |
1.68” 42.8 | 0.5” 12.7 | 10” 254 | 38,090 17293 | 1”MT |
1.75” 44.5 | 0.5” 12.7 | 9.25” 235 | 49,680 22555 | 1”MT |
2.125” 54 | 0.75” 19 | 10” 254 | 66,920 30382 | 1-1/2”AM MT |
2.875” 73 | 1” 25.4 | 11.75” 298 | 127,816 58028 | 2 3/8“PAC |
3.125” 79.4 | 1” 25.4 | 16.5” 419 | 122,887 55791 | 2 3/8“PAC |
