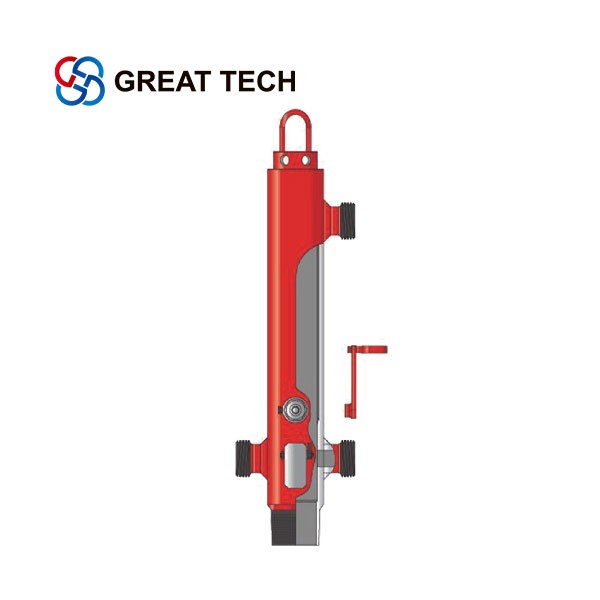

Model-DT-E-Single-Plug-Cement-Head
Features
1.Balance groove design inside,the retaining pin is easy to open.
2.Tape plug indicator.
Parameters
Specifications | Ld of Plug Container | Length of Plug Container | Working Pressure | |||
in | mm | in | mm | in | MPa | psi |
20 | 485 | 19.1 | 650 | 25.6 | 14 | 2000 |
18-5/8 | 475 | 18.7 | 650 | 25.6 | 14 | 2000 |
13-3/8 | 318 | 12.5 | 600 | 23.6 | 35 | 5000 |
10-3/4 | 250 | 9.8 | 550 | 21.7 | 50 | 7000 |
9-5/8 | 225 | 8.9 | 550 | 21.7 | 50 | 7000 |
7 | 157 | 6.2 | 450 | 17.7 | 50 | 7000 |
5-1/2 | 125 | 4.9 | 400 | 15.7 | 50 | 7000 |
4-1/2 | 100 | 3.9 | 300 | 11.8 | 50 | 7000 |
