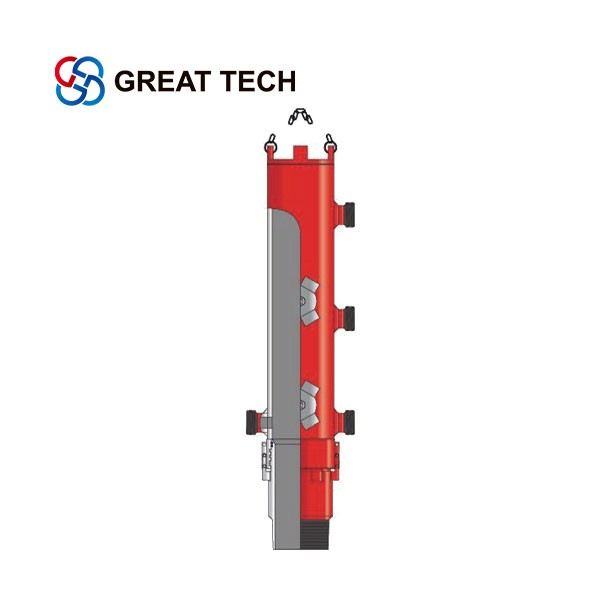

Model-ST-B-Double-Plug-Cement-Head
Features
Quick installation casing adapter allows convenient installation of cementing head.
Large plug container ID allows easy release of plug retain pin.
Plug release indicator provides visual indication for plug pass.
Capable of holding two plugs simultaneously.Used for cementing with top and bottom plugs,or for continuous two stage cementing.
Parameters
Specifications | Ld of Plug Container | Length of Plug Container | Working Pressure | |||
in | mm | in | mm | in | MPa | psi |
20 | 485 | 19.1 | 650 | 25.6 | 14 | 2000 |
18-5/8 | 475 | 18.7 | 650 | 25.6 | 14 | 2000 |
13-3/8 | 350 | 13.8 | 600 | 23.6 | 35 | 5000 |
10-3/4 | 282 | 11.1 | 550 | 21.7 | 50 | 7000 |
9-5/8 | 252 | 9.9 | 550 | 21.7 | 50 | 7000 |
7 | 185 | 7.3 | 450 | 17.7 | 50 | 7000 |
5-1/2 | 147 | 5.8 | 400 | 15.7 | 50 | 7000 |
4-1/2 | 118 | 4.6 | 300 | 11.8 | 50 | 7000 |
