Multi-string-Cutter

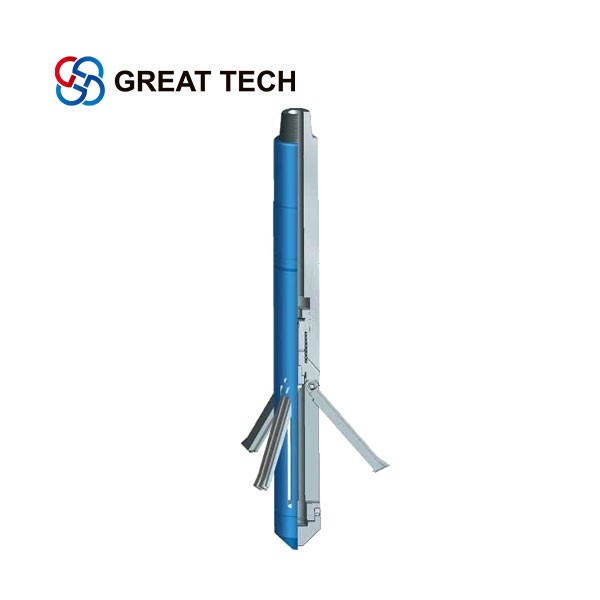

Multi-string Cutter is built to withstand extreme shock encountered while cutting multiple strings of un-centralized conductor pipes. The  unique  construction  of this tool enables the rugged cutter arms to expand outward up to 5 times the diameter of the tool body. The cutter can achieve maximum stability under all types of adverse cutting conditions, including hard spots, eccentricity, interrupted cuts, etc.

For example, a 13 3/8” casing cutter, the diameter is only 11 3/4”. However it can handle and cut a wide range of pipes with varying weights up to a 60” diameter.

Features and Benefits

Cuts multiple strings smoothly, even when the strings are not concentric;

Support maximum expansion of blades, up to 5 times body diameter;

Rugged 3-bladed construction provides fast cut at high speed;

Cutter arms can be changed on rig floor.

When ordering please specify:

Casing size or range to be cut;

Top connection;

Body OD.
