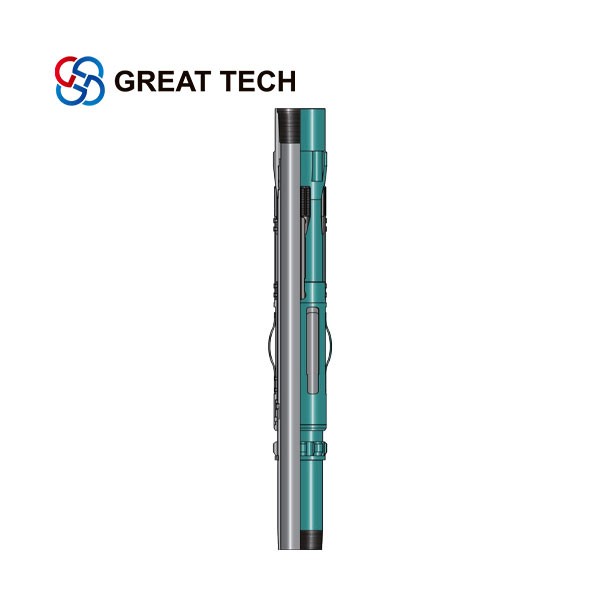

Model-XG-AF-Liner-Hanger-with-Packer
Feature
1.A liner top packer is incorporated into a liner hanger to seal line/casing overlap after setting the liner.
2.The packer is set by compression.
3.Packer element has superior capacity to resist acid,alkali,oil and high temperature.
4.The packer is capable of holding 5,000 psi differential pressure.
Property Parameters
Size （Csg x Line） | Casing Weight | Max O.D. | ||
in | kg/m | lb/ft | mm | in |
13-3/8 | 90.78-101.2 | 61-68 | 302.4 | 11.906 |
71.43-90.78 | 48-61 | 306.4 | 12.063 | |
10-3/4 | 67.71-82.59 | 45.5-55.5 | 233 | 9.176 |
48.74-67.71 | 32.75-45.5 | 238 | 9.37 | |
9-5/8 | 64.74-79.62 | 43.5-53.5 | 208 | 8.189 |
59.53-69.94 | 40-47 | 214 | 8.425 | |
7-5/8 | 35.72-39.29 | 24-26.4 | 168 | 6.614 |
44.2-58.04 | 29.7-39 | 160 | 6.299 | |
7 | 29.76-38.69 | 20-26 | 150 | 5.906 |
38.69-47.62 | 26-32 | 146 | 5.748 | |
47.62-56.55 | 32-38 | 141 | 5.551 | |
5-1/2 | 25.3-29.76 | 17-20 | 114.3 | |
