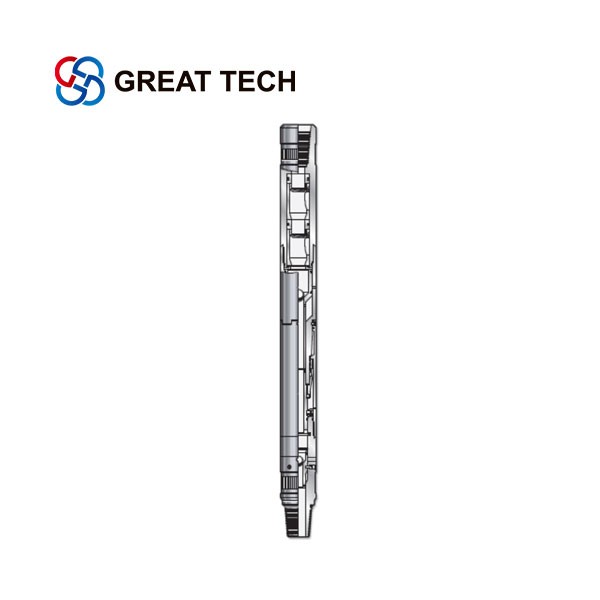

Motorhead Assembly

The Motorhead Assembly incorporates a combination of the 3 standard tools used in a coil tubing bottom hole assembly , into one single assembly. Housing a double flapper check valve, hydraulic disconnect & a dual circulating sub in one compact tool shortens the overall BHA length enabling rig up in situations where riser height is restricted.

EMAIL

Description:

The Motorhead Assembly incorporates a combination of the 3 standard tools used in a coil tubing bottom hole assembly , into one single assembly. Housing a double flapper check valve, hydraulic disconnect & a dual circulating sub in one compact tool shortens the overall BHA length enabling rig up in situations where riser height is restricted.

Datasheet:

O.D.	I.D.	GS	Length	Connection
1.69”	0.44”	1 1/2"	27”	1”MT
1.75”	0.44”	1 1/2"	28”	1”MT
2”	0.53”	2"	28”	1-1/2”MT
2.125”	0.56”	2"	30”	1-1/2”MT
2.375”	0.56”	2"	30”	1-1/2”MT
2.875”	0.94”	3"	38”	2-3/8”PAC
3.125”	1.18”	3"	38”	2-3/8”PAC
