RetrievableTest-TreatSqueeze-RTTS-Paceker

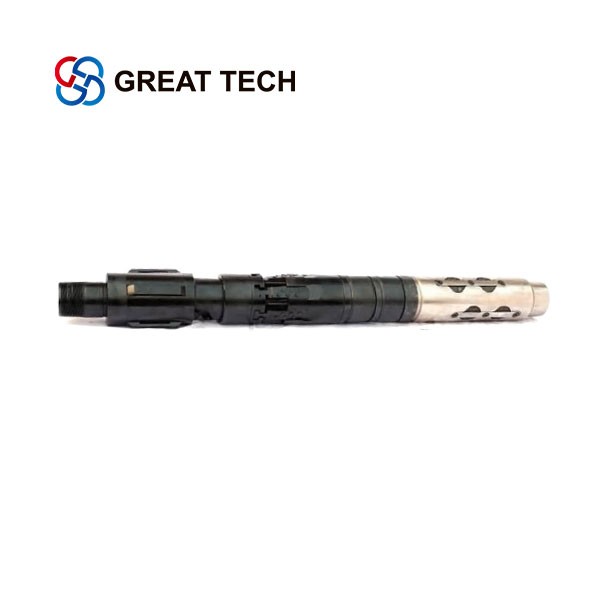

Traditional fracturing packers, due to their low pressure resistance, cannot meet the actual requirements of in-situ fracturing stimulation of deep oil reservoirs. Therefore, the RTTS packer from Halliburton, USA, was introduced. The RTTS packer is a large-diameter, suspended packer capable of isolating pressure in both directions. It is widely applicable to operations such as oil testing, high-pressure acidizing, cement injection, and other reservoir stimulation.
Type | od size(mm) | id size(mm) | Maximum outer diameter of friction block(mm) | length | connection |
4 1/2″ | 93.5 | 42 | 110.7 | 1222 | 2 3/8″EUE•B×P |
5″ | 103 | 45 | 120.7 | 1226 | 3 3/32″-10UN•B×2 7/8″EUE•P |
5 1/2″ | 115.5 | 48 | 133.5 | 1232 | 3 1/2″-8UN•B×2 7/8″EUE•P |
6 5/8″ | 137.9 | 45 | 163.1 | 1289.5 | 3 1/2″-10UN•B×2 7/8″EUE•P |
7″ | 143.5 | 61 | 169.6 | 1380 | 4 5/32″-8UN•B×2 7/8″EUE•P |
7 5/8″ | 161.1 | 61 | 179.6 | 1378 | 4 5/32″-8UN•B×2 7/8″EUE•P |
8 5/8″ | 187.2 | 76.2 | 220 | 2088 | 4 1/2 ″IF•B×P |
9 5/8″ | 209.5 | 101 | 242 | 2088 | 4 1/2 ″IF•B×P |
10 3/4″ | 238.8 | 95 | 264 | 2088 | 4 1/2 ″IF•B×P |
13 3/8″ | 303.3 | 95.3 | 328.5 | 2573 | 4 1/2 ″IF•B×P |
