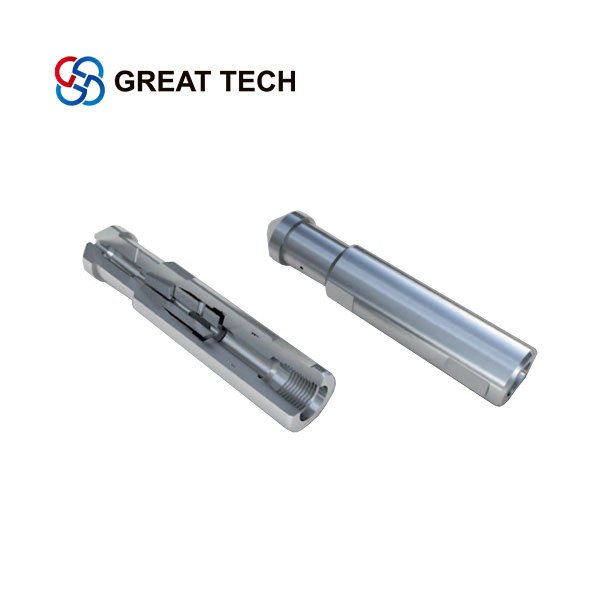

Rope Socket Series Slip Design

Slip Design is the uppermost component in a wireline toolstring and forms an essential link between the toolstring and the wire. The specially designed slip assembly secures the braided wireline to the Rope Socket.

EMAIL

Slip Design is the uppermost component in a wireline toolstring and forms an essential link between the toolstring and the wire. The specially designed slip assembly secures the braided wireline to the Rope Socket.

Link tension increases the grip of the Rope Socket to the wire.

Available tool sizes as shown.
Tools O.D.	Fishneck O.D.	Wire Size	Connection Type
1.500〞	1.375〞	3/16〞- 7/32〞	UN/JHQ/JHP
1.875〞	1.750〞		UN/JHQ/JHP
2.125〞	1.750〞		UN/JHQ/JHP
2.500〞	2.313〞		UN/JHQ/JHP
